Chiropractic
Full-spine adjusting
Thoracic, lumbar & pelvic drops with auto-cocking, tensioned to the practitioner.
ADA-compliant elevating table — auto-cocking drop mechanism

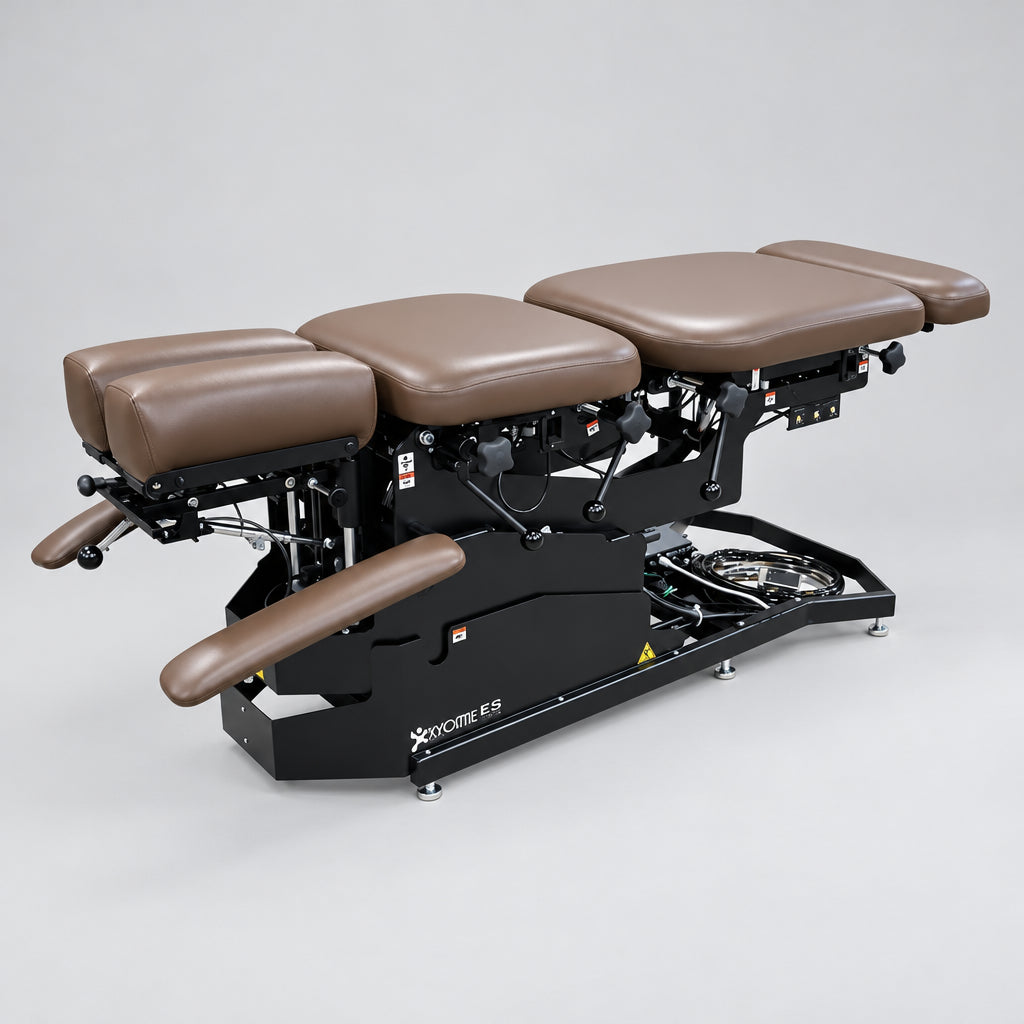

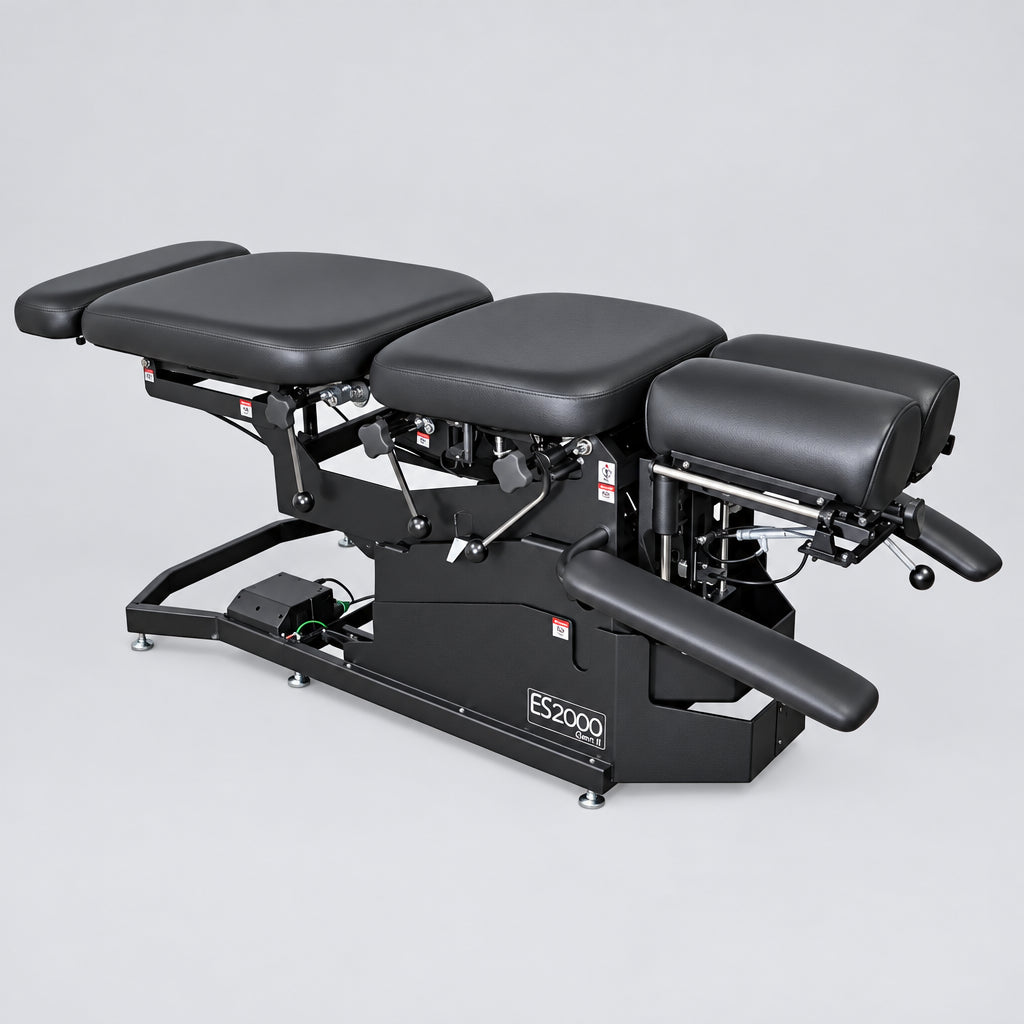

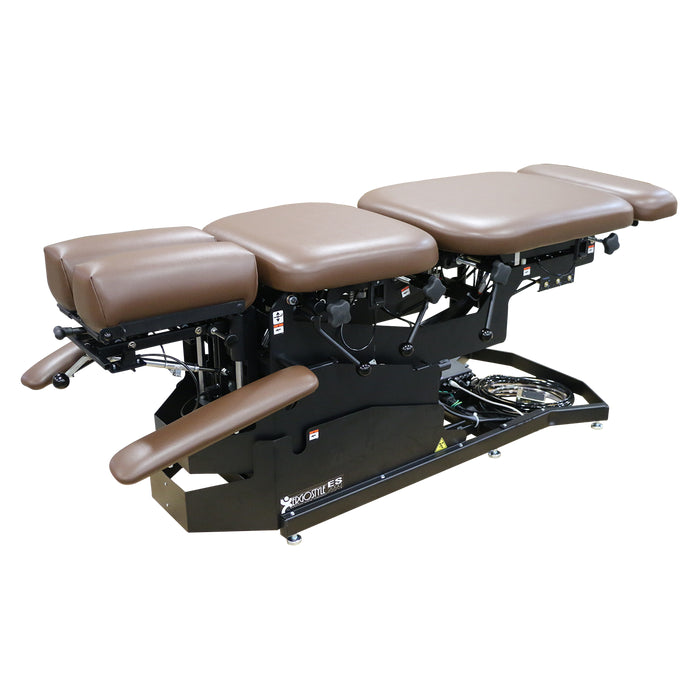

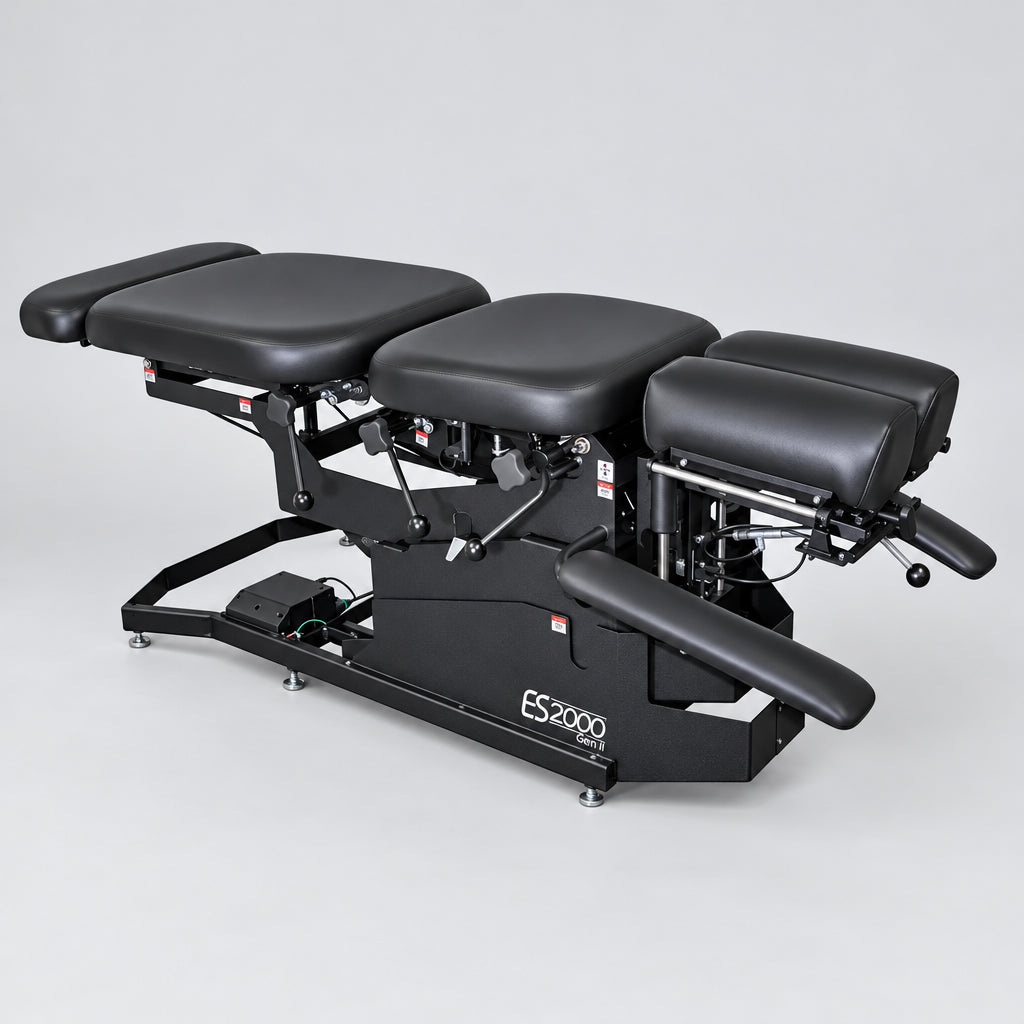

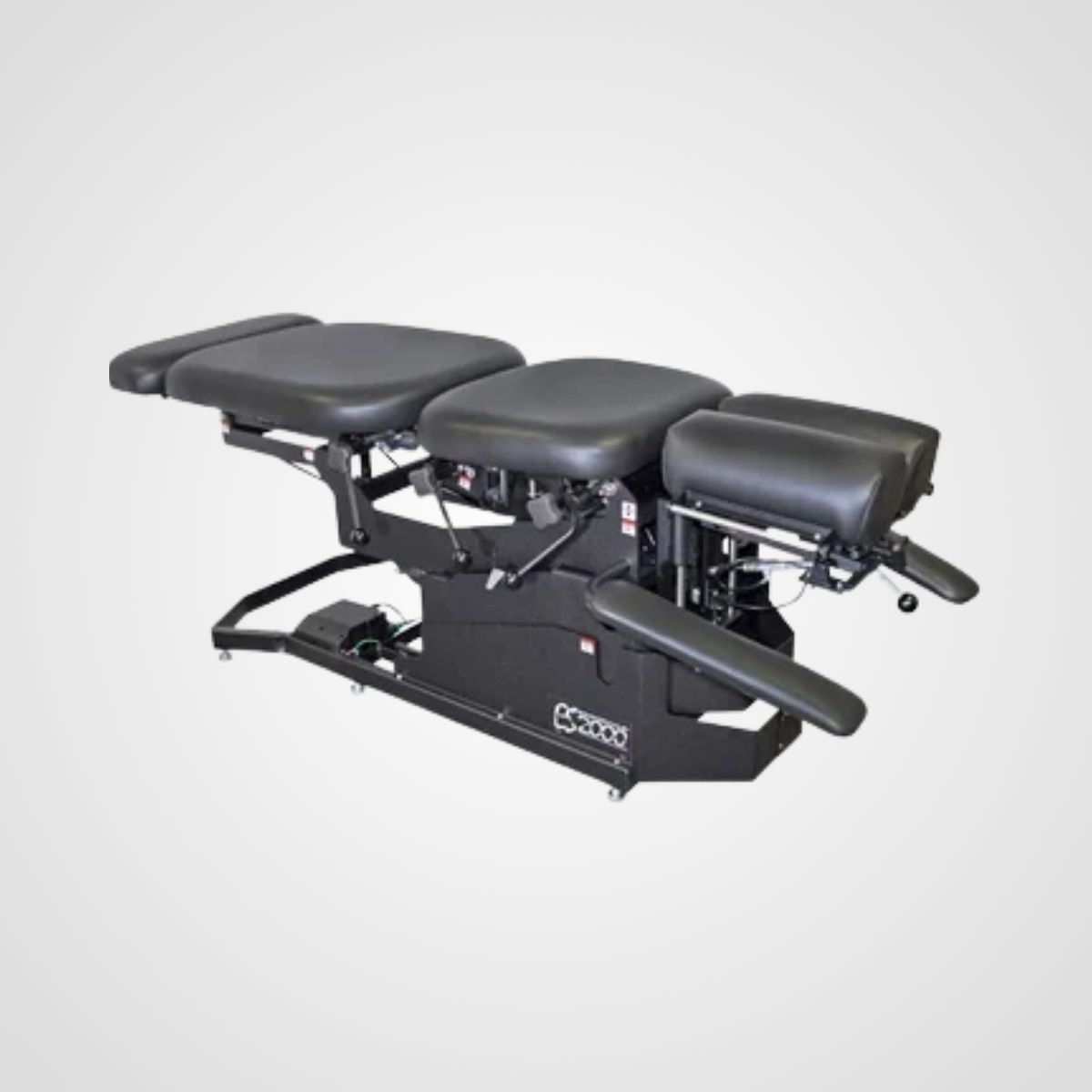

ES2000 Gen II Elevating Table with Auto-Cocking
The ErgoStyle ES2000 Gen II elevates the full cushion on each drop — not a single pin — for a smoother, lower-force adjustment. Electric elevation from 20–32", dual auto-cocking foot pedal, and thoracic, lumbar & pelvic drops included on this configuration.
SKU ES9320 · 120V · Sold to health professionals & multidisciplinary clinics only
Sold to health professionals and multidisciplinary clinics only.
- 0% financing up to 52 weeks (pre-approval)
- Price match, plus 5% off the difference
- Ships from Mississauga, Ontario
400 lbsRated lifting capacity
20–32 ″Electric elevation range
3 dropsThoracic · lumbar · pelvic
22.5 ″ wideSeamless multi-density cushion
10 yrExpected service life
Clinical indications
Built for a full-spine, full-day caseload.
Manual therapy
Mobilization at any height
Electric elevation from 20–32" positions the table to the technique, not the other way around.
Accessibility
ADA-compliant transfers
Low-end elevation supports wheelchair and assisted transfers on and off the table.
Bariatric-ready
400 lb rated capacity
Full-cushion drop mechanism holds accuracy at higher patient loads.
Multi-practitioner clinics
Modular per provider
Headpiece, chest, and pelvic options configured to how each practitioner works.
Post-op & rehab
Positioning & drop control
Foot-pedal elevation and tension-adjustable drops for careful, repeatable positioning.
ErgoStyle drop technology
The whole cushion drops. Not a single pin.
Most drop tables release at one pin point, so the force of the adjustment concentrates at a single spot on the patient. ErgoStyle's patented drop mechanism elevates and releases across the entire cushion instead — spreading the force, and giving the practitioner a smoother, lower-effort release.
Auto-cocking drops re-set themselves via the dual foot pedal, so there's no reaching under the table between patients. A tension knob on each drop lets you dial in resistance per practitioner or per patient.
This configuration (ES9320) includes auto-cocking thoracic, lumbar, and pelvic drops with manual drop handles as a backup.
| Mechanism | What it means in use |
|---|---|
| Full-cushion drop | Force spreads across the cushion, not one pin point |
| Auto-cocking | Resets via foot pedal — no reaching under the table |
| Tension knob | Resistance dialled in per practitioner or patient |
| Manual backup handles | Included alongside auto-cocking on this configuration |
Practical extensions

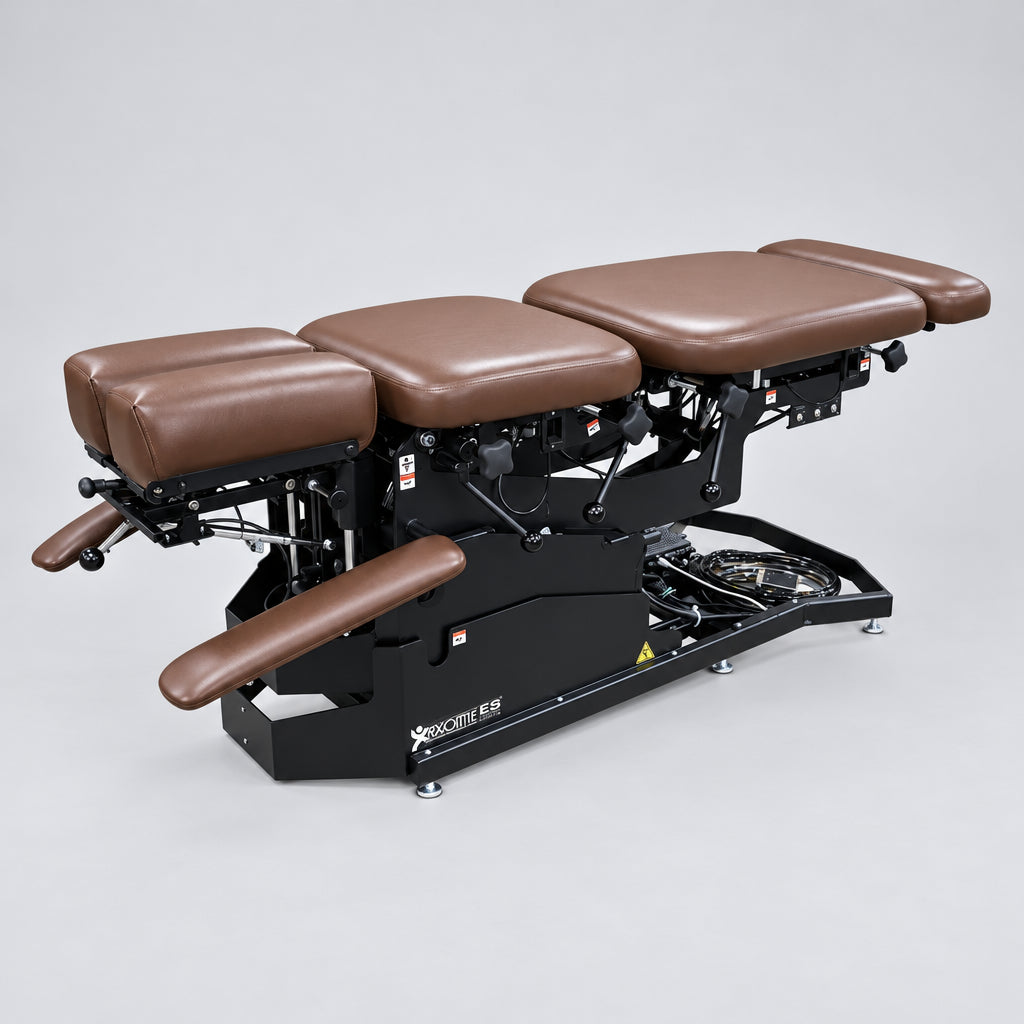

Fully modular — configure it to your practice.
Every section of the ES2000 upgrades independently, now or later. Choose the headpiece, chest, pelvic, and drop combination that matches how your practice actually works.
- Headpiece options from tilt-only through cervical distraction, forward drop, and toggle drop
- Breakaway, elevating chest with dual side control, and an elevating pelvic section
- Dual foot pedal elevation and a super-silent 20 Amp compressor option
From enquiry to install
How an ES2000 acquisition works.
Consultation
We confirm your clinic type, practitioner mix, and floor space before recommending a configuration.
Configuration
Headpiece, chest, pelvic, drop, and foot-control options matched to how your practice works.
Quote & freight
A written quote with freight coordination — curbside delivery with call-ahead is standard, and we flag any add-on fees upfront.
Delivery & setup
Curbside delivery as standard, with inside delivery and uncrating available as an add-on service.
Product development
Precision engineered for a full clinic day.
Elevation
Smooth, foot-controlled
Electric elevation, 20–32"
A single foot pedal drives elevation on the base configuration, with a dual foot pedal option available. Expanding covers keep the lifting mechanism protected through the full range of motion.
Drop mechanism
Auto-cocking, tension-adjustable
Thoracic, lumbar & pelvic drops
The dual auto-cocking foot pedal resets each drop between patients, with manual drop handles included as a backup. Tension adjusts independently per drop, per practitioner.
Comfort
Seamless, multi-density
22.5" wide cushions, tilting headpiece
Multi-density foam under a seamless cover, a tilting headpiece with adjustable face cushions, and a locking 6" extending ankle rest round out the base configuration.
Technical data
The spec plate.
ES2000 GEN IISKU ES9320 · 120V · Sold to health professionals & multidisciplinary clinics only
- Elevation range
- Electric, 20–32"
- Overall dimensions
- 70"L × 28"W × 20–32"H
- Extended length (ankle ext.)
- 76"L
- Cushion width
- 22.5"W, seamless, multi-density foam
- Lifting capacity
- 400 lbs.
- Rated voltage
- 120V / 240V
- Rated frequency
- 60Hz / 50Hz
- Current
- 2.7 Amp
- Duty cycle
- Intermittent — max 1 min on, 9 min off
- Finish
- Durable powder coat
- Lifting mechanism
- Expanding covers
- Compliance
- ADA compliant
- Drops
- Thoracic, lumbar & pelvic — auto-cocking + manual handles
- Foot control
- Dual auto-cocking foot pedal
- Headpiece
- Tilting, adjustable sewn face cushions
- Ankle rest
- Locking, 6" extending
- Chest & pelvic
- Stationary chest, fixed pelvic section
SKU ES9320 — 120V (ES9330 — 240V also available). ADA compliant. Additional headpiece, chest, pelvic, drop, and foot-control options available at configuration.
