Cellular
Biostimulation
Laser energy converts to chemical reaction energy, increasing activity in the cellular respiratory chain.
Class 4 medical laser — high-power photobiomodulation therapy

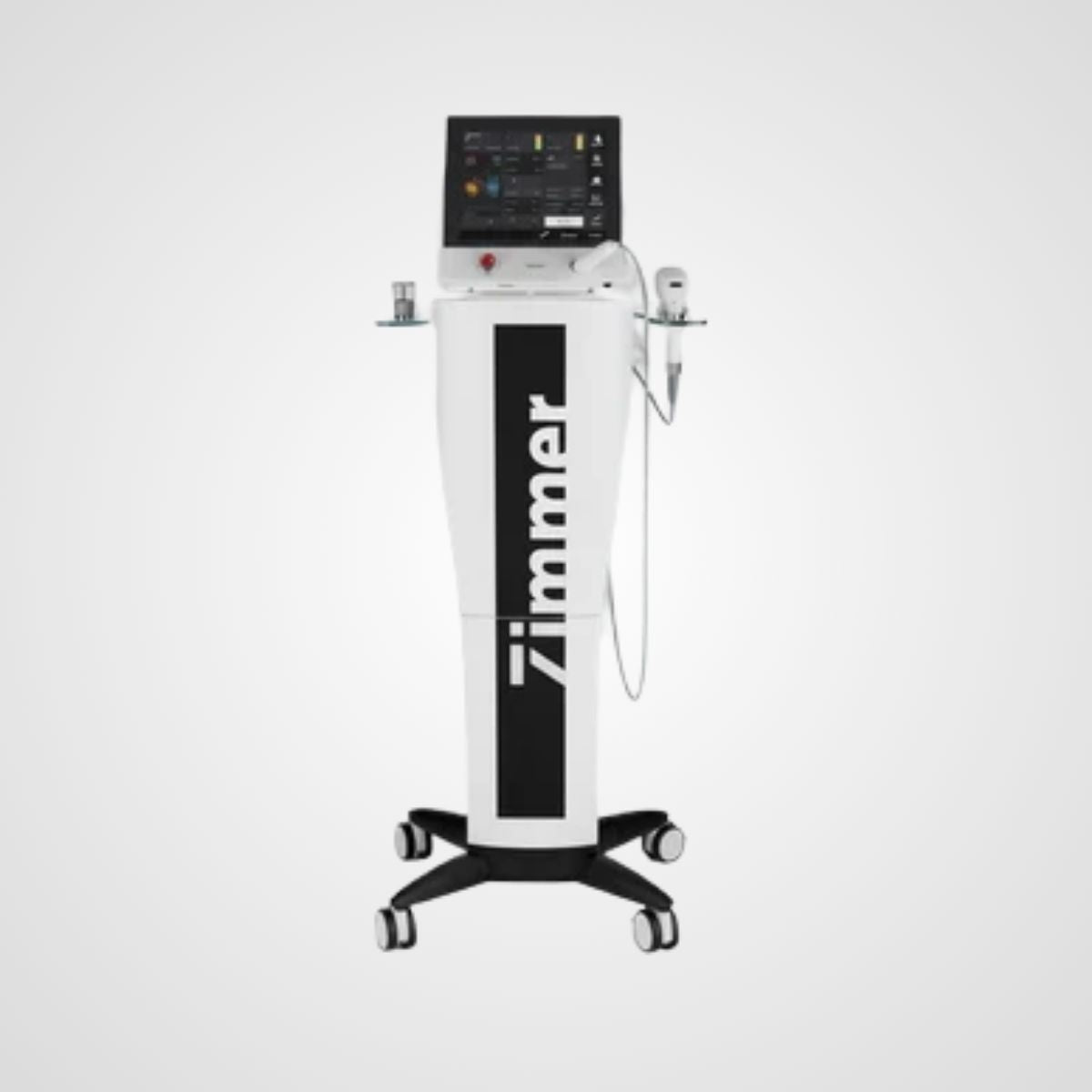

OptonPro - Zimmer Laser (Class 4 Laser)
OptonPro delivers up to 25 W across three simultaneous wavelengths (810 / 980 / 1064 nm) for biostimulation, analgesic, and regenerative effects — with real-time skin temperature monitoring built into the applicator.
SKU MEDI-4684-X01 · Available in 10W / 15W / 25W · Sold to health professionals & multidisciplinary clinics only
Sold to health professionals and multidisciplinary clinics only.
- 0% financing up to 52 weeks (pre-approval)
- Price match, plus 5% off the difference
- Ships from Mississauga, Ontario
25 W maxEmitted output
3 wavelengthsSimultaneous emission
IV classMedical laser
Ø0.4 ″ minTreatment area
8.4 lbUnit weight
Clinical indications
Five documented effects, one wavelength set.
Thermal
Thermal effects
Therapeutic heat in the tissue up to approx. 43°C, driven by tissue thermal conductivity.
Pain
Analgesic effects
Mild thermal stimulus triggers gate-control pain inhibition; strong stimuli engage the endorphinergic system.
Reflexive
Reflexive effects
Segmental reflexes activated by laser light relax muscle tissue and inhibit pain.
Healing
Regenerative effects
Non-thermal fibroblast activation accelerates healing, using only small amounts of laser energy.
Wavelength technology
Three wavelengths, delivered together.
Most laser units fix a single wavelength, limiting the practitioner to one depth of effect per session. OptonPro emits 810 nm, 980 nm, and 1064 nm simultaneously, opening a broad field of therapeutic options in a single application rather than a sequence of them.
Higher power also means more power density in the tissue — so the applicator can work at a greater distance from the skin, enlarging the therapeutic radius and saving time per session, without sacrificing the thermal effect at depth.
Skin temperature is monitored via a sensor integrated into the laser applicator, so undesirably high skin temperatures are avoided regardless of skin type.
| Wavelength | Typical role |
|---|---|
| 810 nm | Superficial tissue, analgesic-weighted effect |
| 980 nm | Mid-depth penetration, vascular response |
| 1064 nm | Deeper tissue, tendons & joint capsules |
| Simultaneous | Combined biostimulation and thermal effect |
Practical extensions

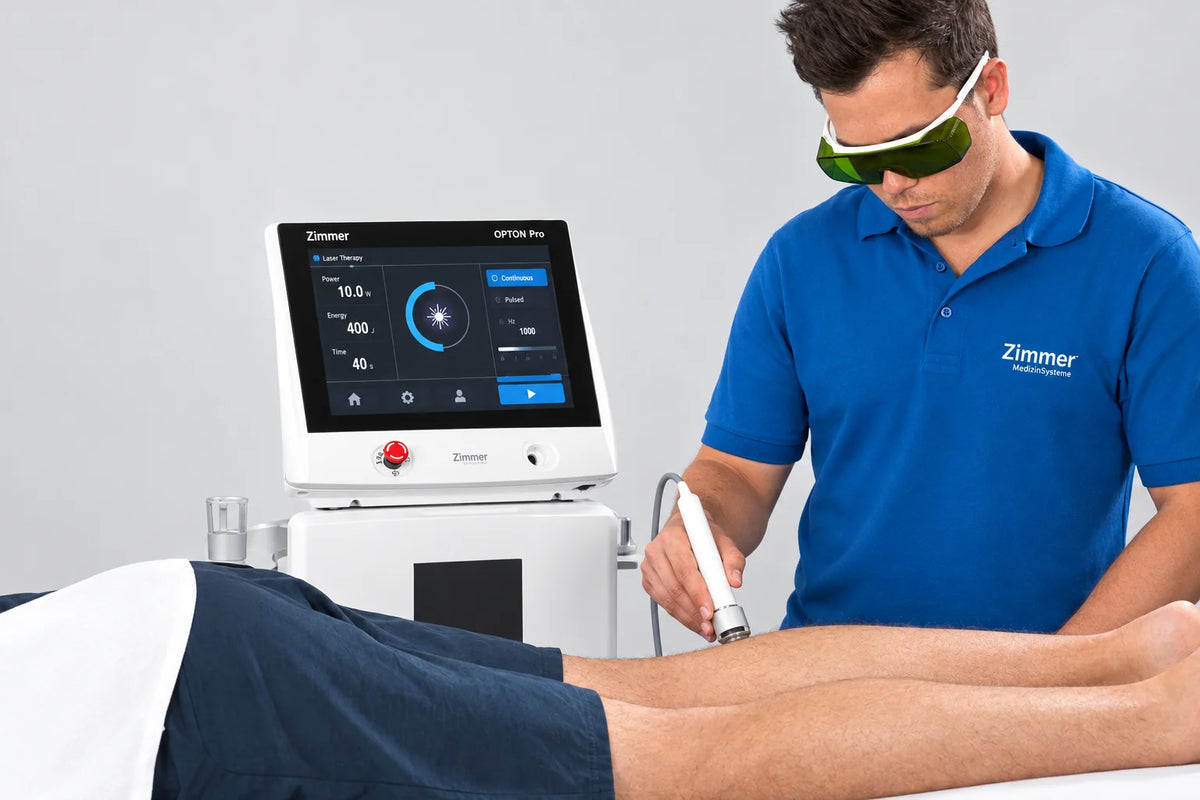

A built-in Therapy Assistant, guided by evidence.
Rather than starting from a blank parameter screen, OptonPro recommends a starting point — then tracks whether it worked.
- Recommended parameters generated automatically from the treatment area, pain condition, and skin type
- Integrated Visual Analog Scale (VAS) tracks patient pain perception before and after each session, saved to the patient file
- Two interchangeable spacers hold the applicator at defined, repeatable distances from the skin
From enquiry to install
How an OptonPro acquisition works.
Consultation
We confirm your clinic type and caseload, and which power output — 10W, 15W, or 25W — fits your treatment mix.
Configuration
Applicator, spacers, and stand configuration matched to your treatment rooms.
Quote & financing
A written quote with 0% financing options, plus your price-match request if applicable.
Delivery & onboarding
Delivery coordination, setup, and a staff walkthrough on wavelength selection and VAS tracking.
Product development
Maximum operating convenience.

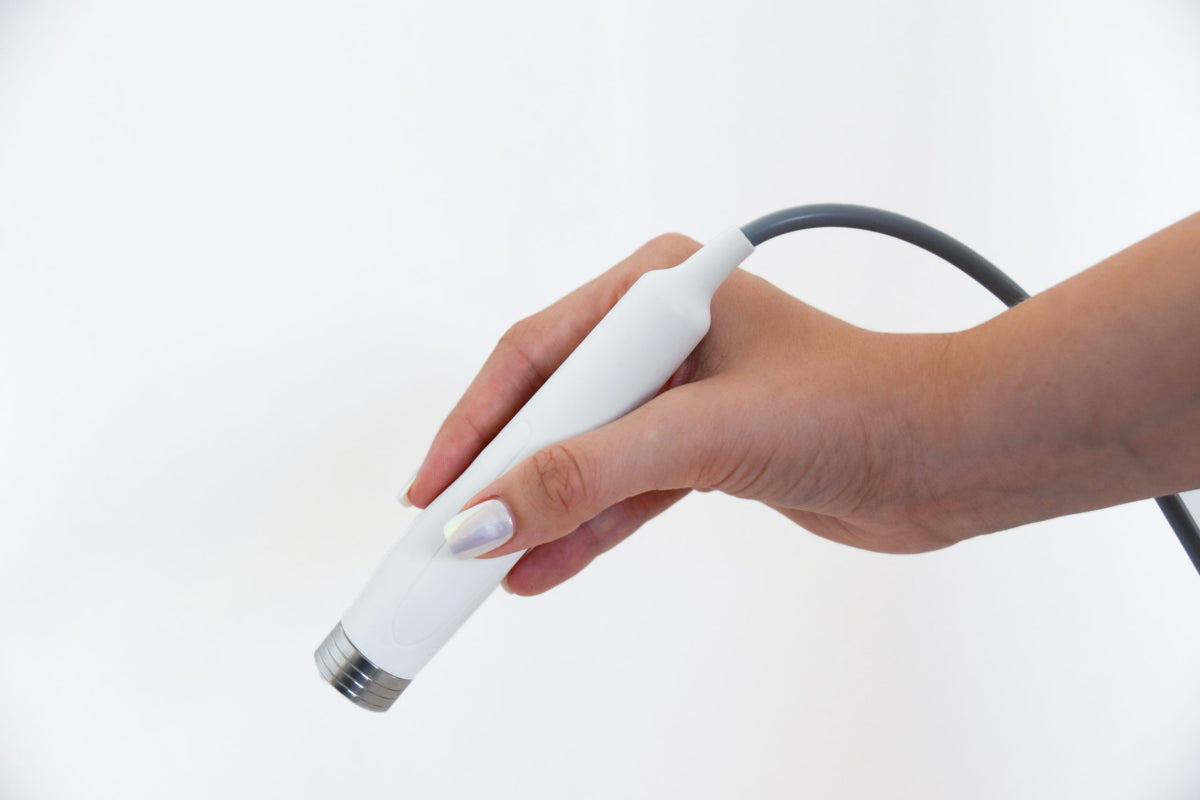

Applicator
Ergonomic, double-click continuous mode
One-handed laser applicator
Laser light is emitted from an ergonomically shaped applicator with a manually adjustable switch — double-click once for continuous emission, with no further action needed from the user.
Safety
Integrated skin sensor
Real-time skin temperature monitoring
A sensor built into the laser applicator monitors skin temperature throughout therapy, so undesirably high temperatures are avoided — whatever the patient's skin type.

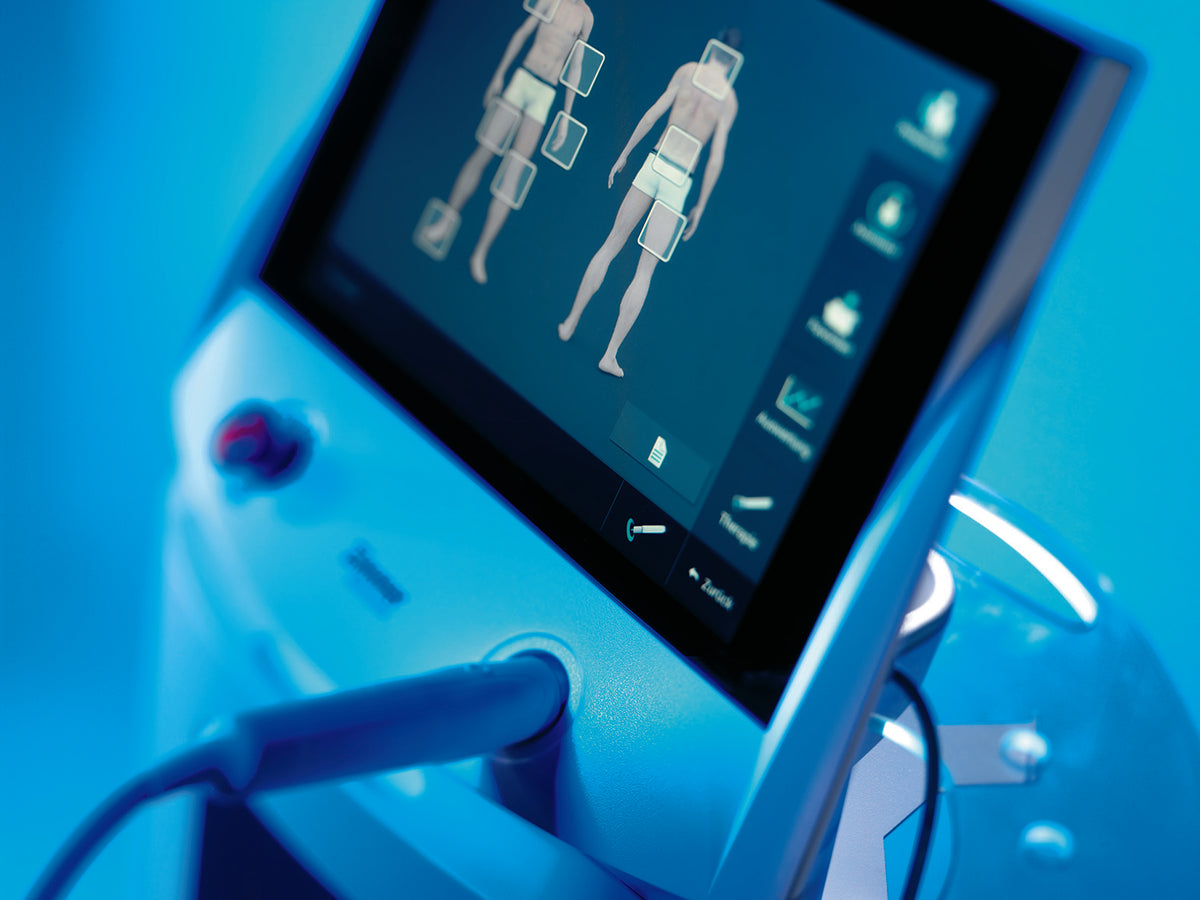

Interface
Colour touch display
Fast access to therapy screens, VAS & history
A large, colourful display gives quick, direct access to the therapy screen — click a body part on the interface for therapy recommendations, without digging through menus.
See it running

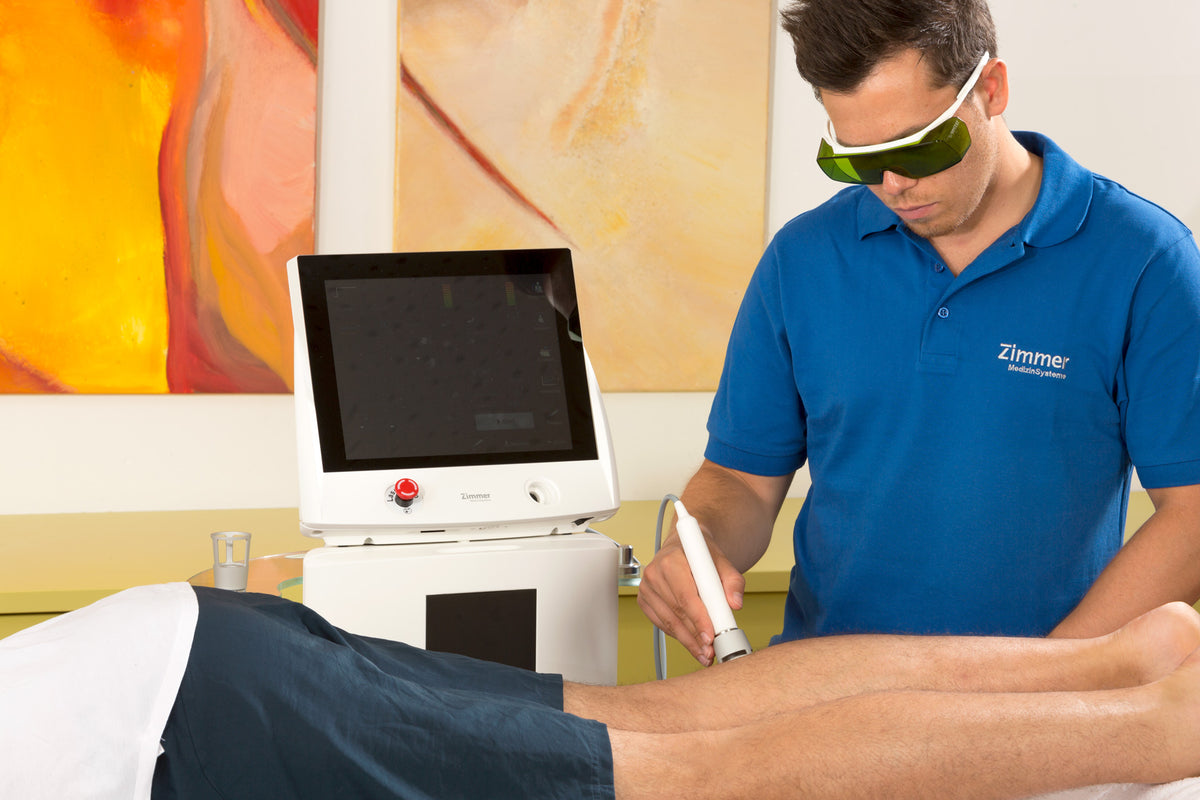

OptonPro, in the treatment room.
High-power laser therapy, treatment demoDevice demo
Treating epicondylitis with OptonProIn session

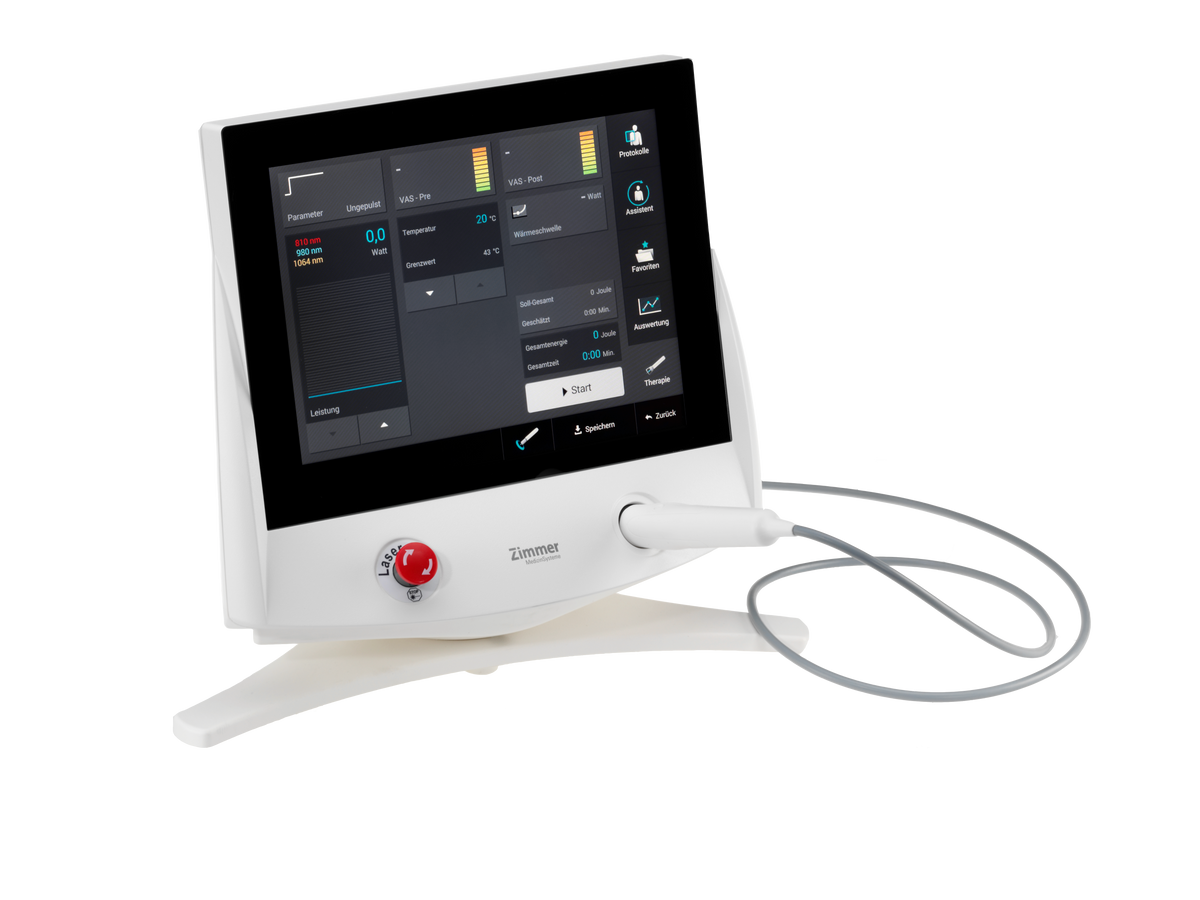

Technical data
The spec plate.
OPTONPROSKU MEDI-4684-X01 · Available in 10W / 15W / 25W · Sold to health professionals & multidisciplinary clinics only
- Laser diodes
- 810 nm / 980 nm / 1064 nm
- Emitted output, max.
- 25 W (10W and 15W variants also available)
- Treatment area
- Min. Ø 0.4"
- Laser class
- 4 — observe special regulations
- Power consumption
- 1.8 A
- Operating voltage
- 100–240V~, 50Hz / 60Hz
- Protection class
- II
- Applied part
- Type B, per EN 60601-1
- Dimensions
- 11.8"H × 13.8"W × 7.9"L
- Weight
- 8.4 lb
- Therapy Assistant
- Auto-recommends parameters by area, condition & skin type
- VAS tracking
- Pain scale recorded pre/post session, saved to patient file
SKU MEDI-4684-X01. Manufactured by Zimmer MedizinSysteme, Germany. Specifications shown for the 25W configuration.
Why clinics buy through us
One supplier for the whole build.
One supplier
OptonPro alongside treatment tables, shockwave, ultrasound, and daily clinic consumables — one order, one delivery schedule.
Configuration guidance
We help size the 10W, 15W, or 25W output to your caseload before you commit.
Price match, plus 5%
Bring a competing quote and we'll match it, then take an extra 5% off the difference.
Ongoing support
Applicators, servicing questions, and protocol advice don't stop at delivery.
Financing
0% financing for up to 52 weeks.
Instant approval on qualifying applications, for terms of 26 or 52 weeks depending on the device. Available to professional customers, subject to pre-approval.
Price match+5% of difference
Financing termUp to 52 weeks
ApprovalInstant, pre-approval based
EligibilityProfessional customers
