Pain
Acute, subacute & chronic pain
Effect-related presets cover the full progression of a pain case.
Class IIa medical device · Combined electro & ultrasound therapy

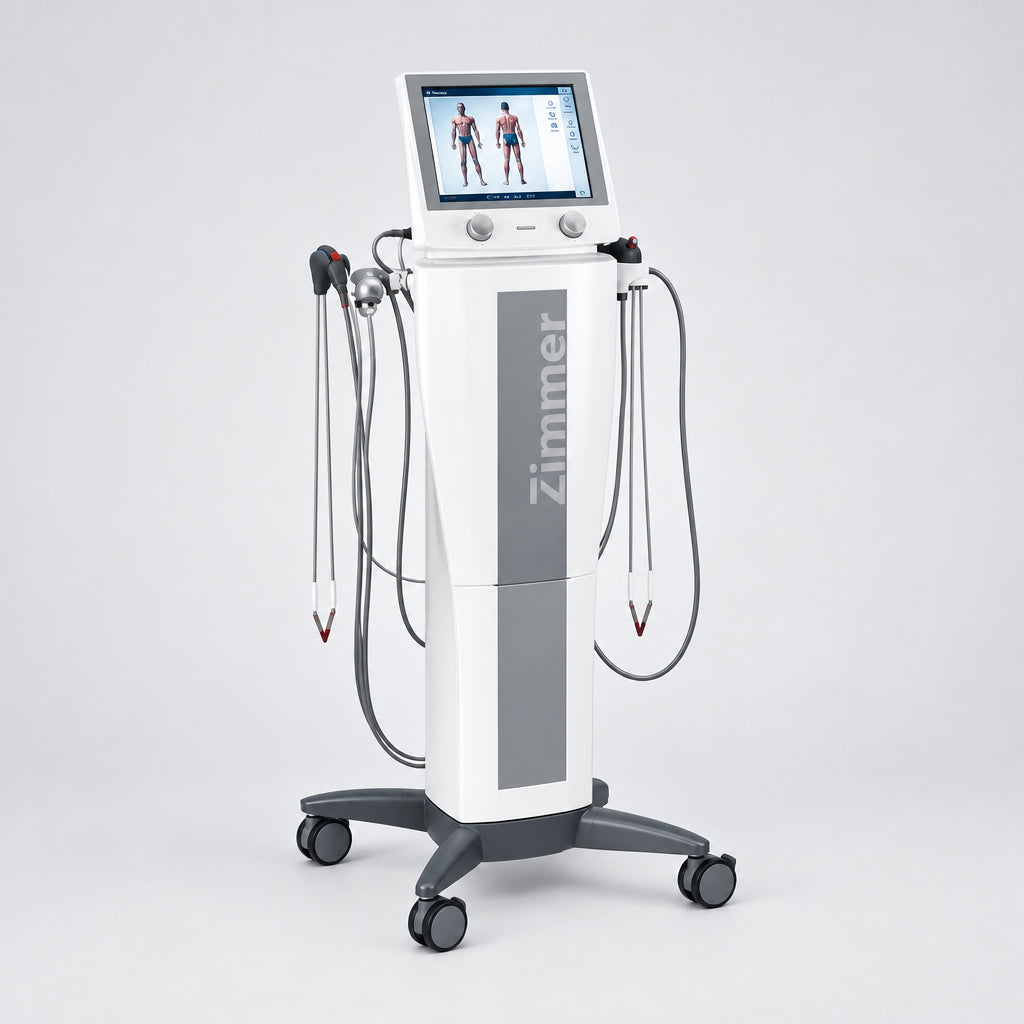

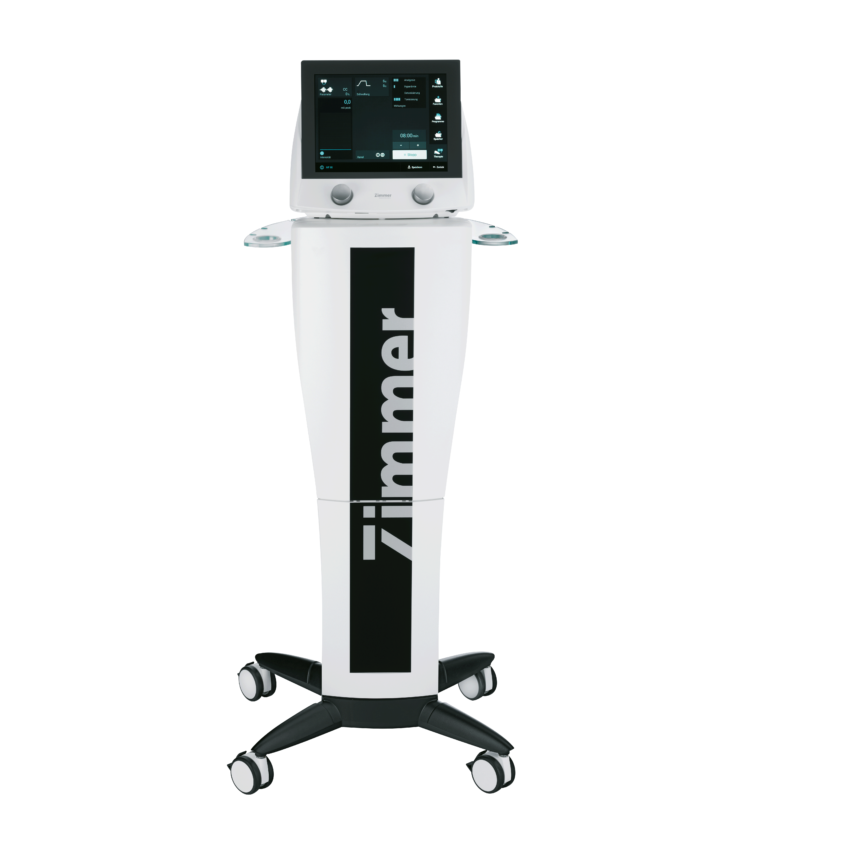

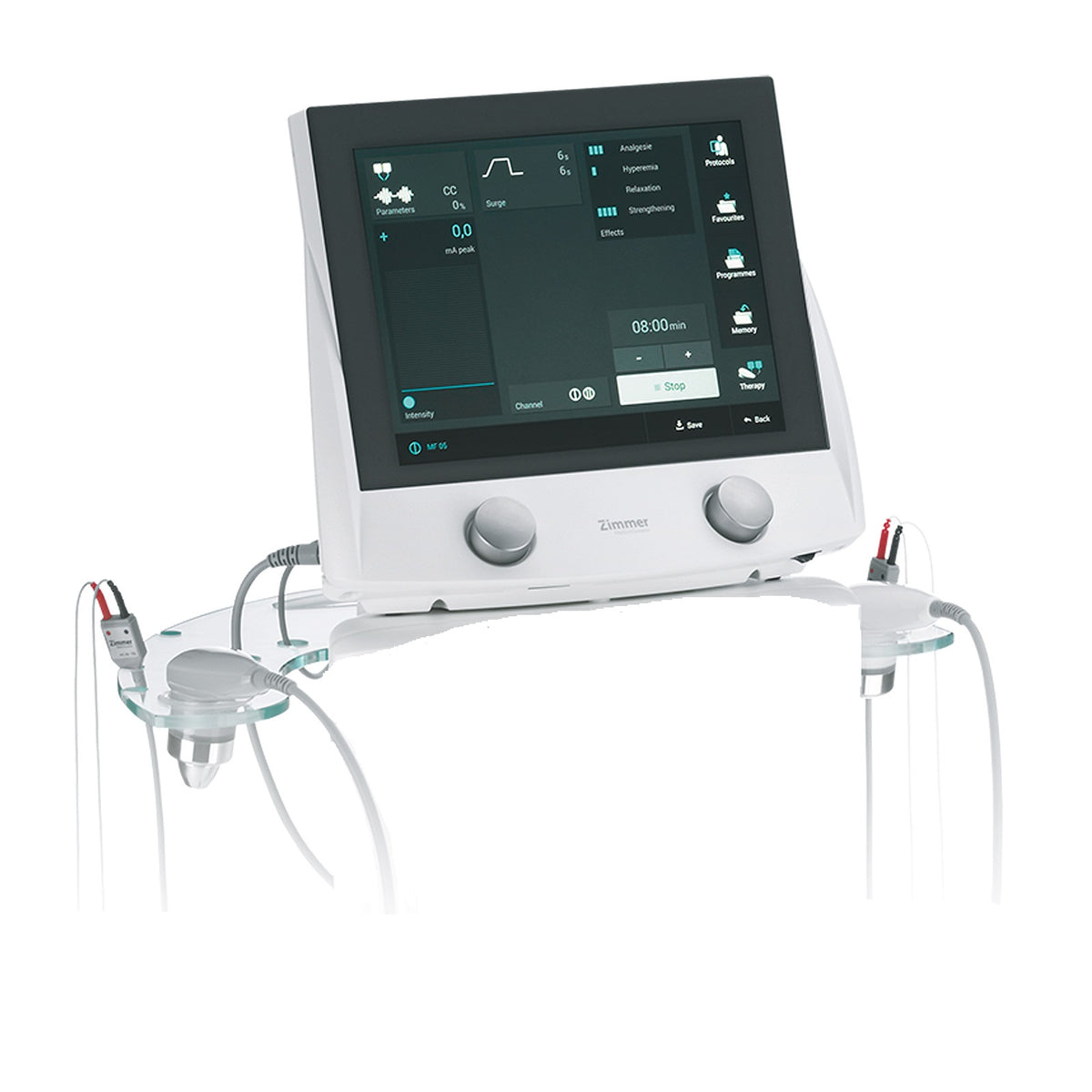

PhySys- Zimmer Electrotherapy & Ultrasound unit
PhySys is a high-tech therapy center for electrotherapy and ultrasound — used solo or combined in simultaneous therapy — with three independent channels and a 12.4" touchscreen that keeps every parameter one tap away.
SKU PHYSIO-6221-X01-01
Sold to health professionals and multidisciplinary clinics only. Our team confirms eligibility before any order is processed. Not shipped to the USA.
- 0% financing up to 52 weeks (pre-approval)
- Price match, plus 5% off the difference
- Ships from Mississauga, Ontario
3 channels2 electro · 1 ultrasound
27 waveformsCurrent forms available
1 & 3 MHzUltrasound frequencies
12.4″ touchColour touchscreen
120+ programsMemory & favourites
Application spectrum
Built for a wide clinical caseload.
Muscular
Muscle stimulation
Targeted electrostimulation across independent channels.
Circulation
Circulation & regeneration
Supports recovery and tissue metabolism.
Tissue
Scar & tissue healing
Phonophoresis-assisted protocols for healing tissue.
Orthopedic
Bursitis, tendinitis & epicondylopathies
Combined modality treatment for therapy-resistant complaints.
Delivery
Iontophoresis & phonophoresis
Transdermal delivery driven by current or ultrasound.
SonoSwing technology
Precise control of penetration depth.
PhySys's patented SonoSwing process delivers both ultrasound frequencies at once, in parallel, at a ratio the therapist selects — so the treatment area is reached exactly where it's intended, without swapping applicator heads.
Combined with the ability to run electrotherapy and ultrasound simultaneously, this gives therapists a level of targeting that single-modality units can't match — particularly useful for functional disorders such as myofascial pain syndromes.
Programs can be run in 1-channel or 2-channel mode, modified per patient, and saved to the SD card for recall across visits.
| Frequency | Typical use |
|---|---|
| 1 MHz | Deeper tissue penetration, larger treatment volume |
| 3 MHz | Superficial tissue, more concentrated energy |
| Blended ratio | Custom depth via SonoSwing, dialed to the target area |
| Continuous / pulsed | Thermal vs. non-thermal treatment goals |
Combined use
Sound and electricity, combined.
Simultaneous procedure: running electrotherapy and ultrasound together is an effective method for many conditions — fast and easy thanks to indication-related, preset treatment parameters. It's highly effective for functional disorders like myofascial pain syndromes.
- One touch on the desired program loads every parameter — no manual setup before each session
- Programs modified and saved per patient, transferable via SD card
- Sport and muscle-rehab programs for strength, endurance, and explosive-strength training
From enquiry to install
How a PhySys acquisition works.
Consultation
We confirm your clinic type and caseload, and whether the Vaco vacuum option fits your treatment mix.
Configuration
Applicator sizes, SysCart layout, and electrode accessories matched to your clinic.
Quote & financing
A written quote with 0% financing options, plus your price-match request if applicable.
Delivery & onboarding
Delivery coordination, setup, and a staff walkthrough on operation and maintenance.
Product development
Built for a busy multi-modality clinic.

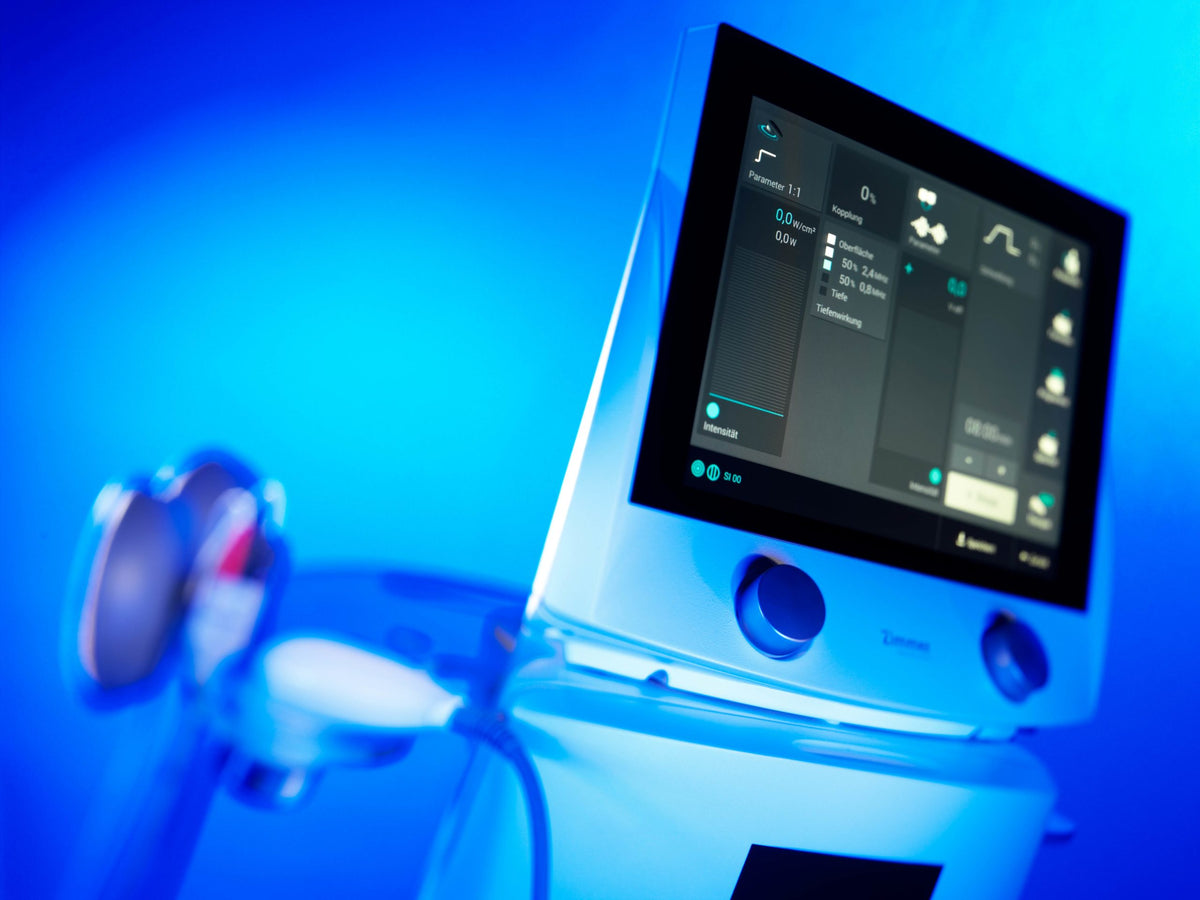

Interface
One screen, every parameter
12.4" colour touchscreen
Every therapy parameter — electro, ultrasound, or simultaneous — is controlled from one large graphic touch display, so the therapist can select an effect-related program and go, instead of dialing in settings by hand.

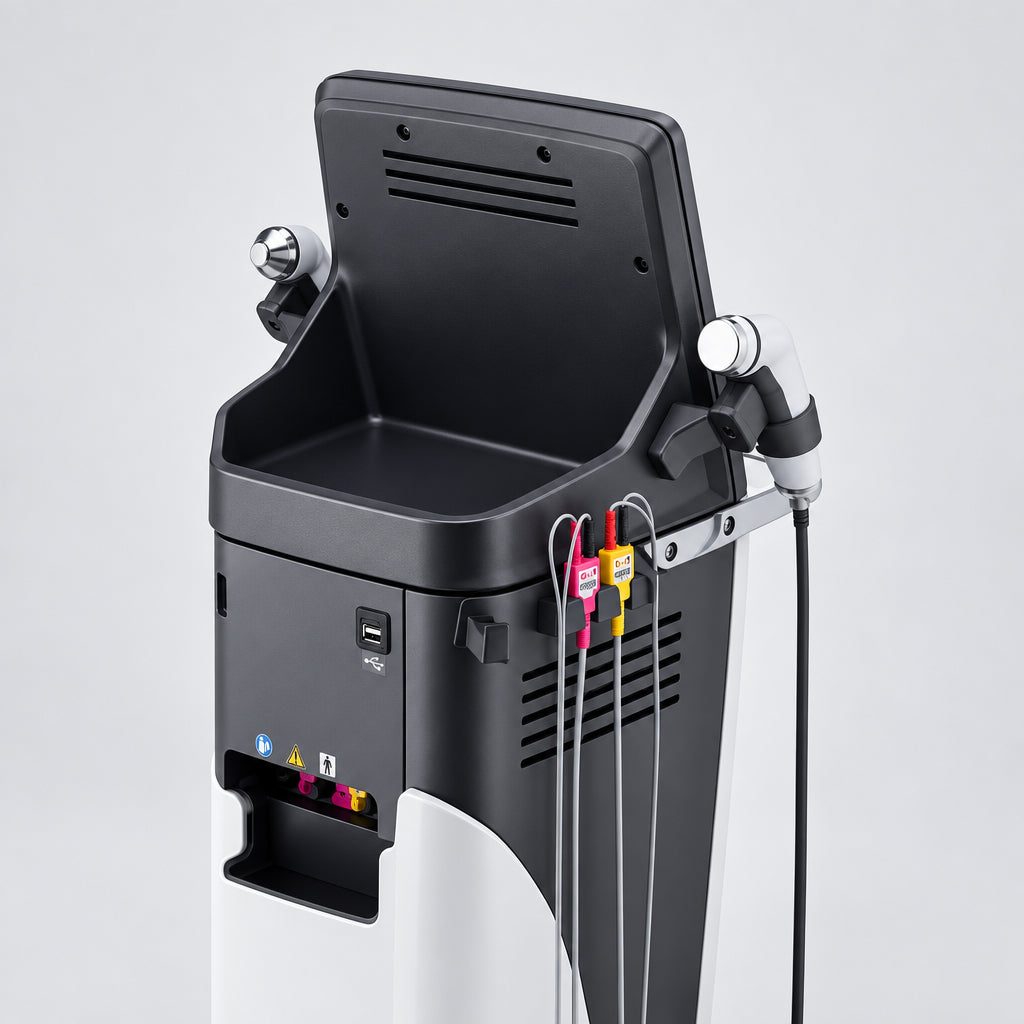

Electrotherapy
Two channels, fully independent
27 current waveforms, run in parallel or alternating
Two electrotherapy channels operate with fully independent intensity and parameters — interference, TENS, diadynamic, galvanic, microcurrent, high-volt, IG, and more — synchronized across channels when a protocol calls for it.

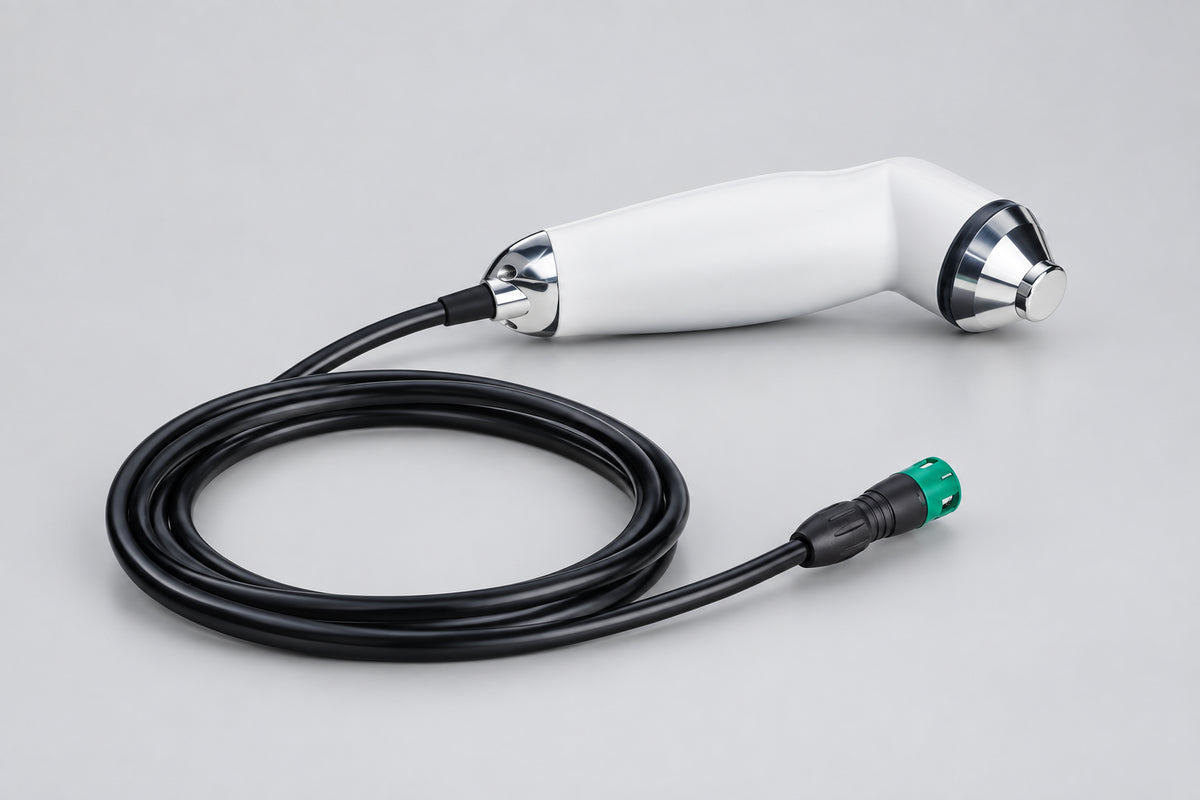

Ultrasound

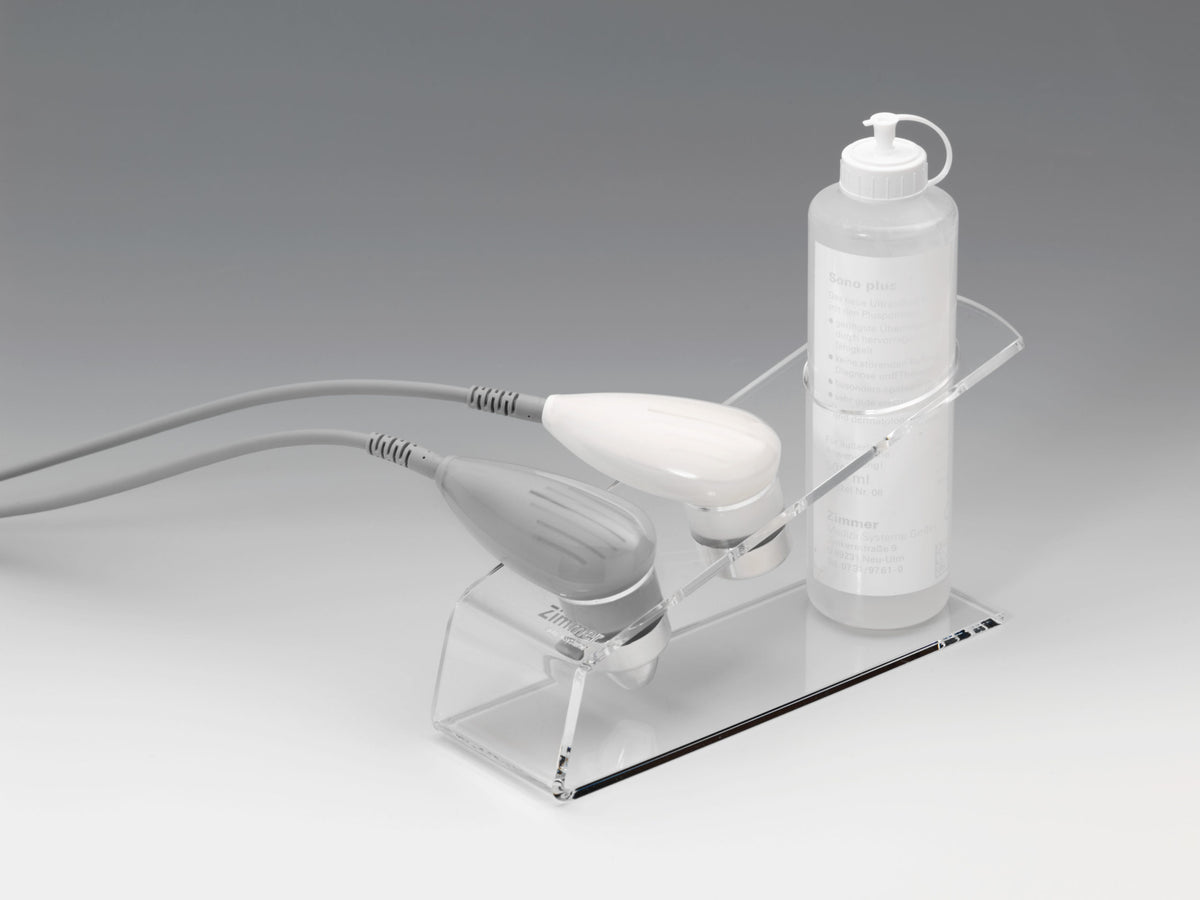

Two applicator sizes
1 & 3 MHz, continuous or pulsed
Large and small contact-area applicators cover everything from broad muscle bellies to small joints, running continuous or pulsed ultrasound at 0–3 W/cm² with pulse rates of 16, 48, or 100 Hz.

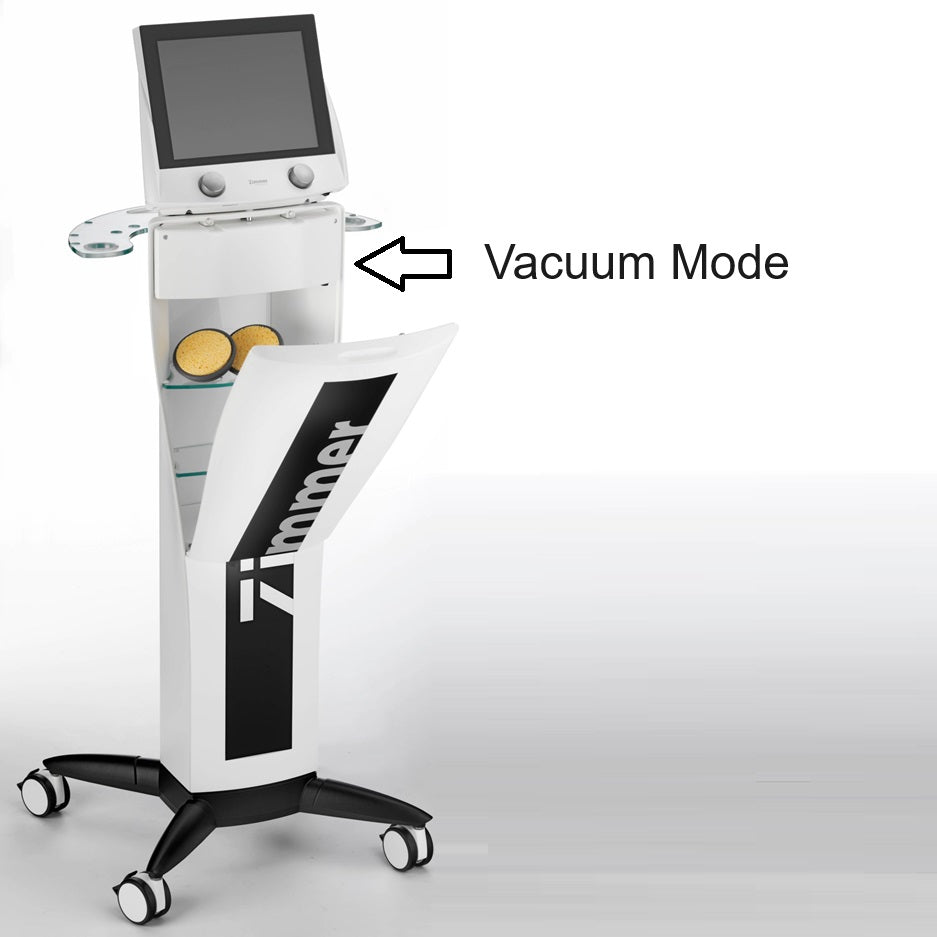

Vaco option
Vacuum therapy accessory
Integrated vacuum unit for electrode placement

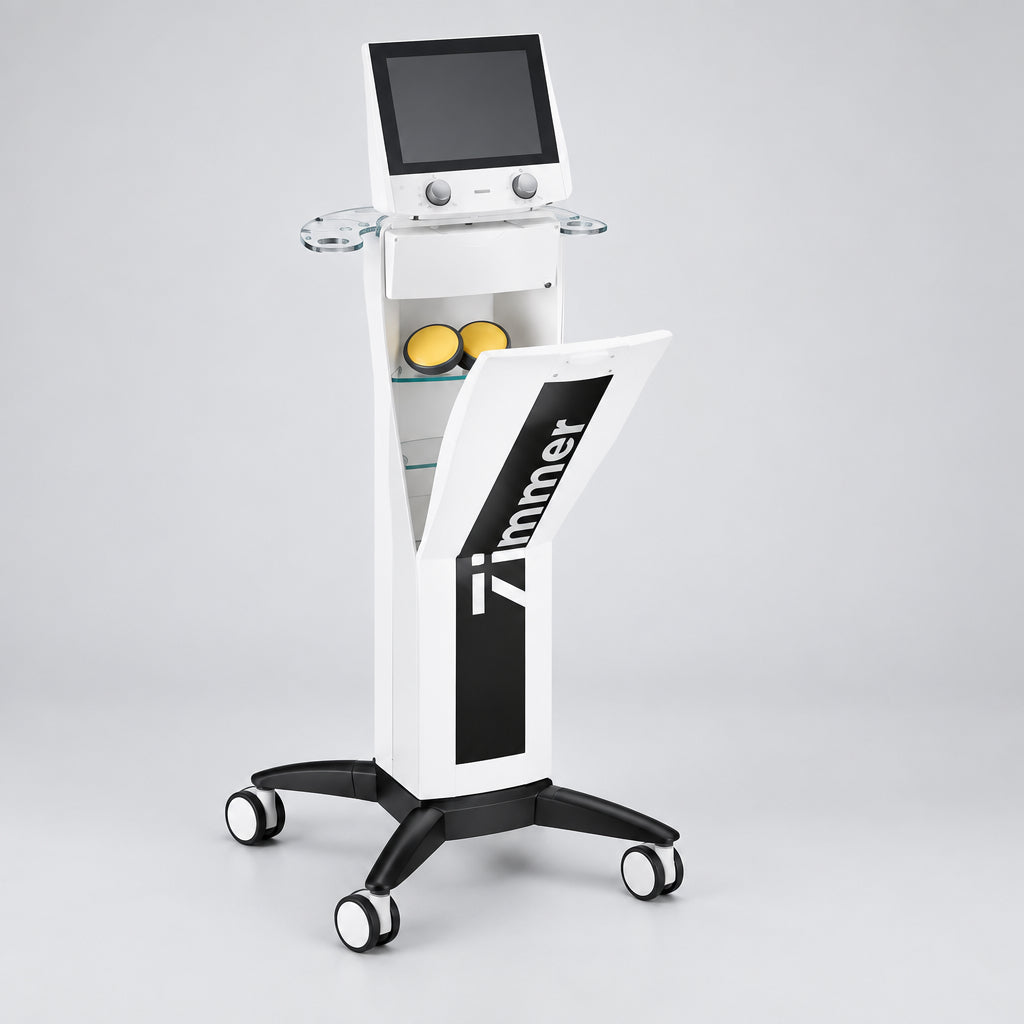

The Vaco option, built into the SysCart, gives simple, comfortable electrode placement with a pulsed or unpulsed massage effect — increasing patient treatment comfort while the electrodes stay firmly in position.
See it running
PhySys, in the treatment room.
Vacuum electrotherapy for knee joint arthrosisIn session
Electrotherapy for epicondylopathy (tennis elbow)In session
Technical data
The spec plate.
PHYSYS — ELECTROTHERAPY & ULTRASOUNDSKU PHYSIO-6221-X01-01
- Power supply
- 100–240 V~ / 50/60 Hz, 220 V~ / 60 Hz
- Power consumption
- PhySys max. 150 VA · Vaco max. 60 VA
- Protection class
- I
- Mains fuse
- 2 × T 2.0 A L, 250 VA
- Applied part
- Type BF
- Display
- 12.4" colour touchscreen
- Memory
- 120+ therapy programs & favourite slots, stored on SD card
- Ultrasound frequencies
- 1 and 3 MHz
- Ultrasound channels
- 1 channel
- Ultrasound mode
- Continuous and pulsed, 0–3 W/cm²
- Pulse frequency
- 5, 10, 20, 33, 50, 80%
- Pulse rate
- 16 Hz, 48 Hz, and 100 Hz
- Applicator contact areas
- Large and small
- Electrotherapy channels
- 2, fully independent (intensity & parameters), parallel or alternating
- Waveforms
- 27 current forms — interference, TENS, diadynamic, galvanic, microcurrent, high-volt, IG, and more
- Synchronization
- 2-channel sync available
- Current mode
- CC or CV
- Vaco max operating pressure
- 500 mBar
- Vaco waste container
- 140 ml
- Vaco control
- Continuous or pulsed, strength adjustable via touchscreen
- Dimensions (H×W×L)
- 118 × 35 × 35 cm
- Weight
- 26 kg (PhySys with column and Vaco)
Manufactured by Zimmer MedizinSysteme, Germany. WE DO NOT SHIP ZIMMER PRODUCTS TO THE USA.
Why clinics buy through us
One supplier for the whole build.
One supplier
PhySys alongside treatment tables, shockwave, laser, and daily clinic consumables — one order, one delivery schedule.
Protocol guidance
We help size electrode kits, applicator heads, and the Vaco option to your caseload before you commit.
Price match, plus 5%
Bring a competing quote and we'll match it, then take an extra 5% off the difference.
Ongoing support
Electrodes, servicing questions, and protocol advice don't stop at delivery.
Owning a PhySys
0% financing for up to 52 weeks.
Instant approval on qualifying applications, for terms of 26 or 52 weeks depending on the device. Available to professional customers, subject to pre-approval.
Price match+5% of difference
Financing termUp to 52 weeks
ApprovalInstant, pre-approval based
EligibilityProfessional customers
Questions we get asked
Who can buy the PhySys?
It is sold to health professionals and multidisciplinary clinics only. Our team confirms eligibility before a quote is issued.
What therapies does PhySys combine?
PhySys combines electrotherapy and ultrasound. The modalities can be used separately or together in simultaneous therapy.
What ultrasound frequencies are available?
PhySys supports 1 MHz and 3 MHz ultrasound, including a blended SonoSwing ratio for custom penetration depth.
How many electrotherapy channels are available?
There are two fully independent electrotherapy channels, with independent intensity and parameters and support for parallel or alternating operation.
What is the Vaco option?
Vaco is an optional vacuum therapy accessory integrated into the SysCart for electrode placement with continuous or pulsed vacuum control.
Do you offer financing?
0% financing is described for terms of 26 or 52 weeks depending on the device, subject to pre-approval for professional customers.
Do you price match?
Yes. The page states that a competing quote can be matched, with an additional 5% off the difference.
Can Zimmer products be shipped to the USA?
No. The page states that Zimmer products are not shipped to the USA.
