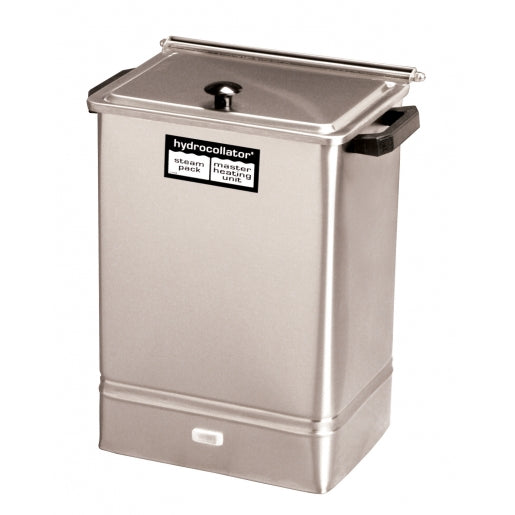

Hydrocollator Heating Units. Durable and easy to maintain, these high-quality stainless steel units give you a constant supply of temperature-consistent HotPacs™.
- Full fiberglass insulation to prevent heat loss
- Dependable, rugged stainless steel design
- Simple to fill with water.
- No plumbing required
- Constant temperature of HotPacs is maintained
- One year warranty
Technical Specifications
*Approximate with HotPacs
| SPECIFICATION | DESCRIPTION |
|---|---|
| Mains Power: | 110~120 V 50/60 Hz |
| Power Consumption: | 1000W |
| Product Weight: | 15 lb (7 kg) |
| Shipping Weight: | 21 lb (8 kg) |
| Dimensions: | 13″L x 8″W x 16″H (33 cm x 20 cm x 41 cm) |
| Electrical Safety Class: | Class 1, Type B |
| Safety Tests: | Conforms to UL 60601-1, certified to Can/CSA C222 No. 601.1 |
| Tank Capacity*: | 3 gal (11 L) |
| Temperature Range: | 160° – 165°F (71° – 74°C) |
| Thermal Cut-Out Temperature: | 180° – 185°F (82° – 85°C) |
| Temperature Accuracy: | +/- 10% |
| Heat Up Time to 160°F (71°C): | 2 Hrs |
| Cool Down Time from 160°F (71°C): | 1 Hr |
| Fiberglass Insulation: | No |
