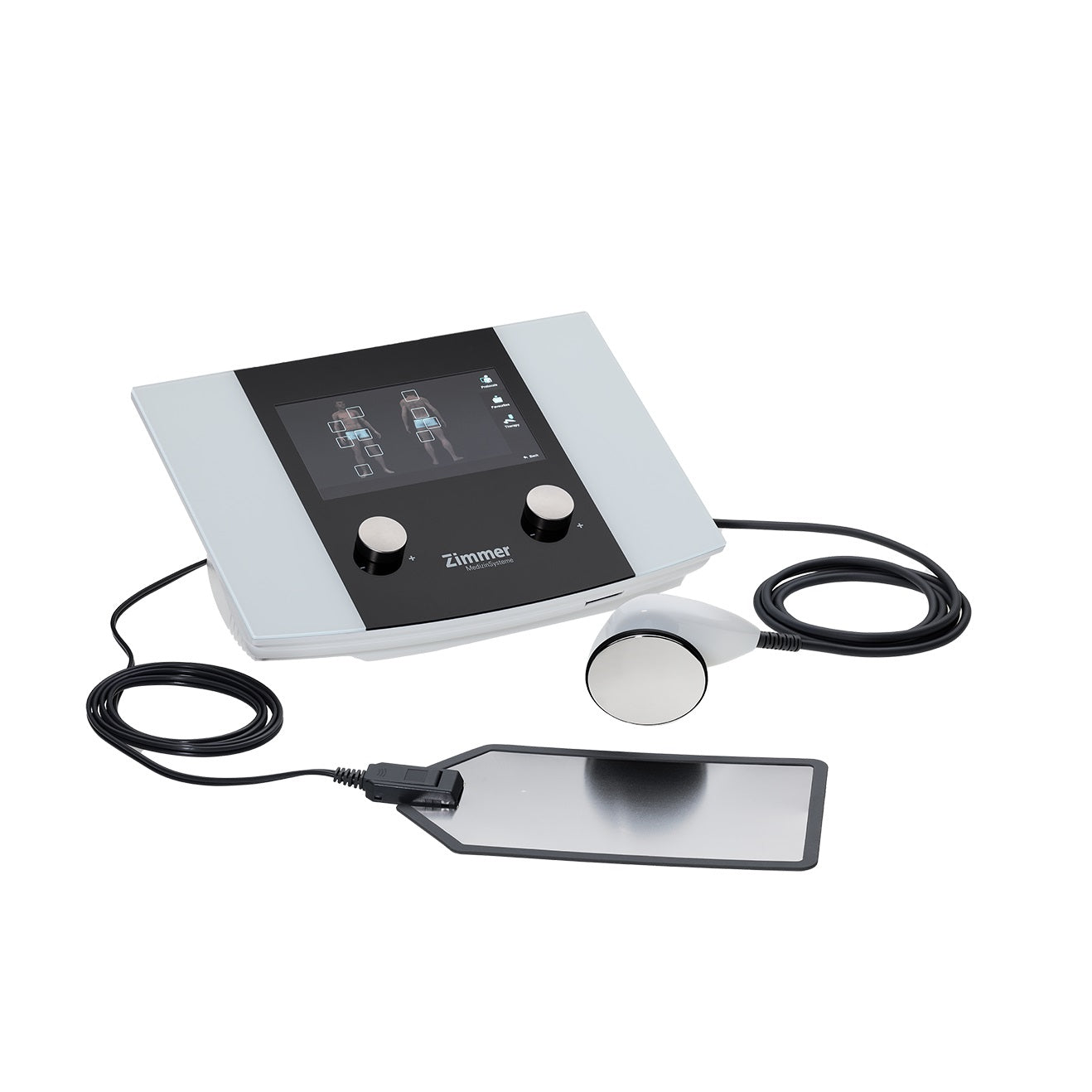

ThermoTK
Adjustable and deep heat
Thermo TK has a broad range of indications and is used for both acute and chronic complaints. Deep heat therapy combined with manual therapy offers exceptional treatment options.
Your benefits at a glance
- Resistive electrodes for the treatment of deeper structures
- (e.g. tendons, ligaments or bone attachments)
-
Capacitive electrodes for the treatment of more superficial structures
(e.g. muscles) - Fast, easy operation on the large color touchscreen
- Indication-related selection of preset programs
- Ideal for mobile use in sports therapy
Scope of delivery

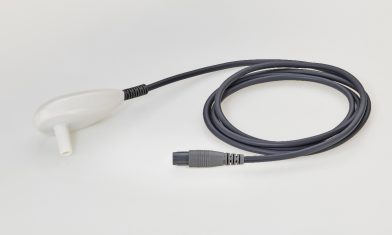

1 handpiece with white connector (8 pin)
1 handpiece with grey connector (4 pin)
1 common electrode cable (210 cm) with white connector (8 pin)
1 common electrode cable (210 cm) with grey connector (4 pin)
1 electrode set

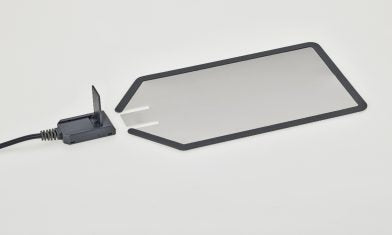

1 common electrode (140 x 240 mm)
1 self-adhesive electrode (105 x 200 mm)
2 silicone sleeves

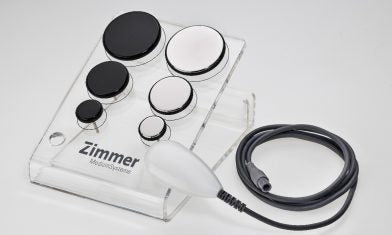

1 holder for electrodes and handpiece

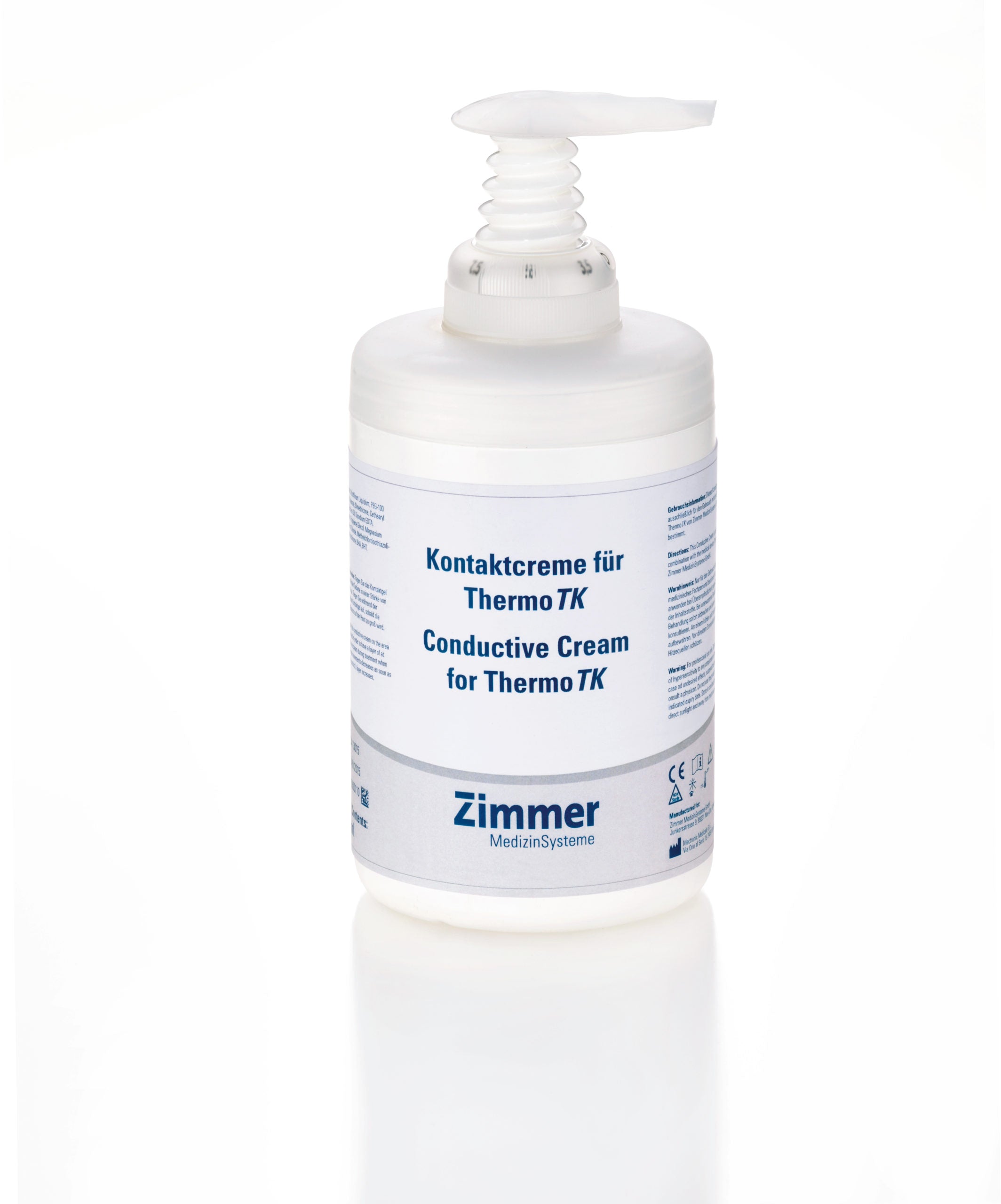

1 ThermoTK contact cream with dosing aid 1 power cable
1 power cable
Technical data
- Power consumption: 300 VA max.
-
Output power: 150 W effective at 500 Ω in resistive mode
250 VA effective at 500 Ω in capacitive mode
60 W effective at 500 Ω in hands-free mode - Frequency: 460 / 540 kHz
- Operating modes: continuous / pulsed
- Dimensions: H 13.5 cm x W 32.2 cm x D 23.4 cm
- Weight: 3.5 kg (without accessories)
- Medical device
