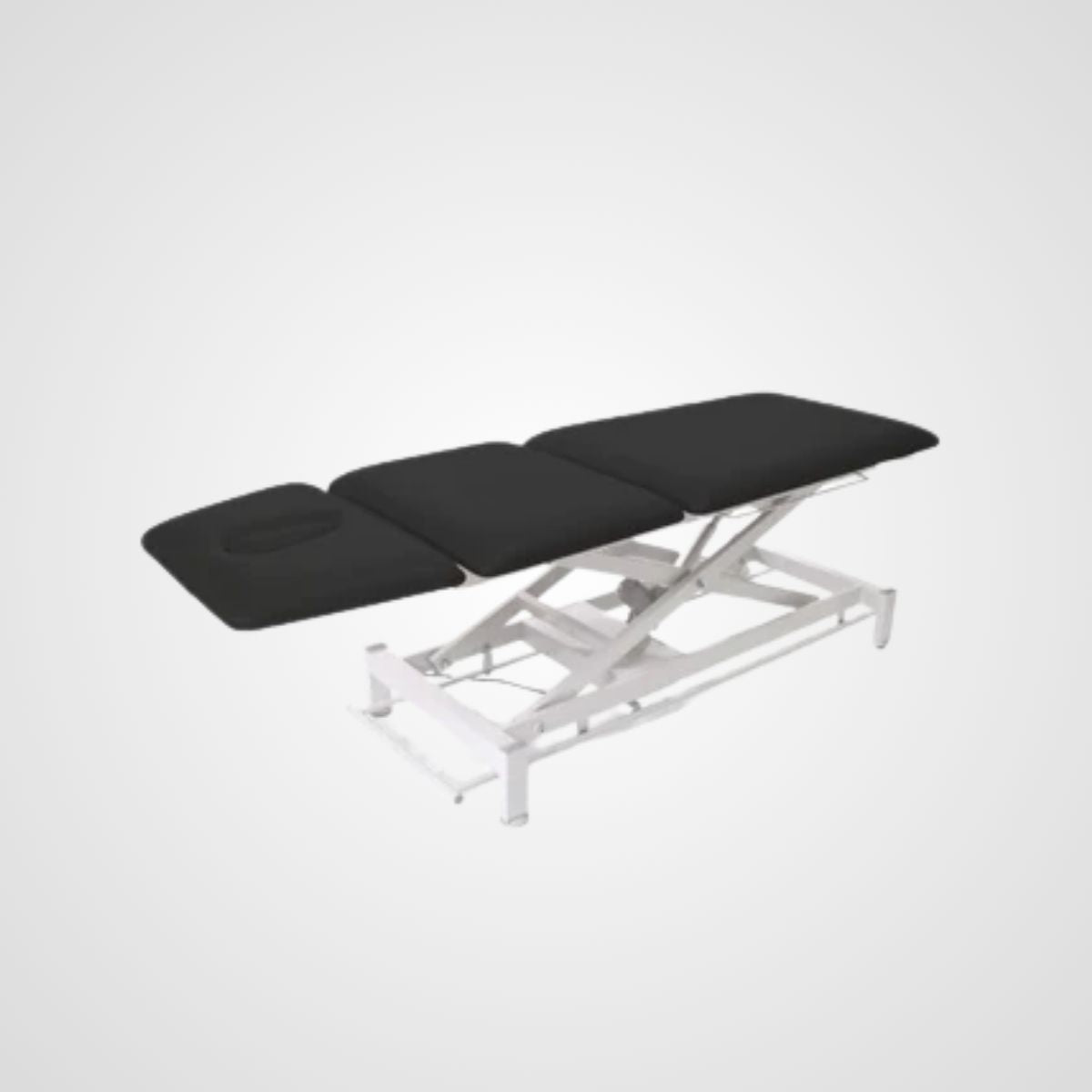

GALAXY TABLE 3 SECTION HIGH-LOW table provide a strong, reliable, stylish and comfortable addition to your clinic. Their slim compact design allows easy access to patient and the scissor lifting frame ensure Galaxy’s minimal footprint even when raising patients. Powerful Hallotronic® actuators deliver the strength to lift the heaviest of patients, while the optical hydraulic actuation system gives the choice of complete wireless freedom.
Features:
- Adjustable head section from +40 to -70 with gas spring
- Easy access foot switch, accessible from any position around the table 360°, for simple height adjustment
- Face hole on head section with removable face hole cover
- Two-layer padding with non-flammable, bio-compatible and scratchproof upholstery in many colours
- Powder coated, stable scissor steel frame
- 2 side brackets for fixation of stabilization belts and elastic bands
- Traction support sleeves
- Personal Authorization System with 2 safety magnetic keys
- Hallotronic System electric high/low height adjustment from 52 to 102 cm with capacity up to 200 kg
- Non-slip rubber feet with 1 cm height adjustment allowing levelling of the table
Electrical
| Mains Power: | 100 – 240 Volt 50/60 Hz |
| Standby Consumption: | max. 1 A |
| Weight: | Standard 87kg/4 Castors 99 kg |
| Shipping Weight: | Table Weight + 50 kg |
| Shipping Dimensions: | 220 cm x 85 cm x 77 cm |
| Lifting Capacity: | 200 kg |
| Height Adjustment: | 52 – 102 cm |
| Electrical safety class: | Class II, Type B |
Hydraulic Pump
| Weight | Standard 88 kg/ 4 Castors 97 kg |
| Shipping Weight: | Table weight + 50 kg |
| Shipping Dimensions: | 220 cm x 85 cm x 77 cm |
| Lifting Capacity: | 200 kg |
| Height Adjustment: | 51 – 96 cm |
